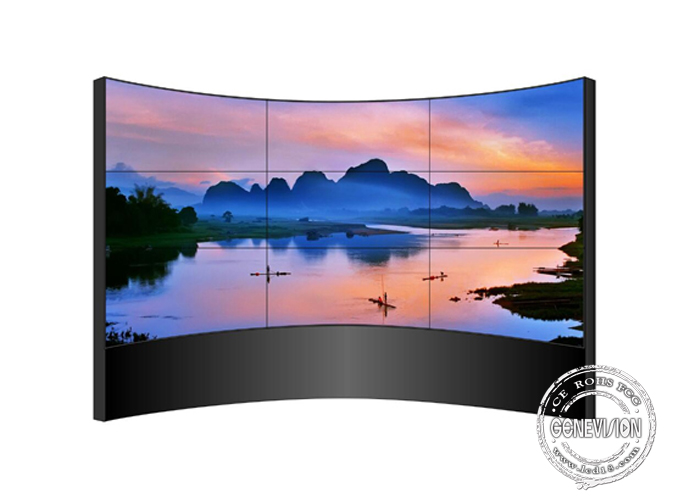

49" 55" 65" 4*4 curved LCD video wall / 500 nits lcd panel TV wall big screen
GENEVISION feature Ultra-thin Bezel design to deliver maximum visual impact for all Digital Signage and Conference Collaboration Applications.
With energy-saving LED Technology that enables 24hr a day operation, and Auto Standby for Image Burn Protection offer premium, reliable performance to meet all your commercial application demands.
Video wall: communicate more effectively every moment of the day, proven to draw consumers attentions and effectively influce their behaviors
From a very simple 2×2 videowall display to a massive 10×10 displays videowall, GENEVISION has the right solution for you. It’s a world where we are constantly seeking the next WOW.
A video wall constructed from LG/SAMSUNG LCD displays does not just offer you an eye-catching way to send marketing messages or show attention grabbing video – it also gives you the opportunity to lower your Total Cost of Ownership while at the same time dramatically increasing sales.
Mainly components:
1. Splicer, will be built-in the back of panel.
2. Simple displaying type: full screen displaying, divided screen part.
3. Complex displaying type: random combination displaying, screen windowing, image moving, image overlying, zoom and stretch.
4. Distirbutor to be used for simple displaying, need to know signal type: VGA//VGA, how many input and output signal.
5. Metrix to be used for complex displaying, need to know signal type: VGA//VGA, how many input and output signal.
6. Other spare parts includes: VGA//VGA cables, Lan cables, power cables/RC/ warranty card/Wrench
7. GENEVISION usually provide total solution including wall-mount brackets.
8. DID video wall support landscape displaying, horizontal displaying, asymmetric displaying.
| Specification: | |
| Specification | MD-550 | Panel Size | 55"LED |
| Panel brand | Original Samsung A level |
| Aspect Ratio | 16:9 |
| Visual Angle | Horizontal 178/Vertical178 |
| Brightness | 500cd/sqm |
| Bezel | 9-14mm |
| Back light | LED backlight |
| Contract Ratio | 5000:1 |
| Resolution Ratio | 1920*1080 |
| Color Components | 16.7M |
| Response Time | 8ms |
| Power Consumption | 120W/150W |
| Standby power consumption | 10W |
| Power Supply | Input:AC110-220V-50/60Hz |
| Life of Panel | 60000Hours |
| Frame size (±1mm) | (Width)1223mm*(Height)696mm |
| Size of Shell Frame(±1mm) | Left /right side7mm/top/bottom8mm |
| Panel Display Area | (Width)1209.6mm*(Height)680.4mm |
| Input Port | 3*BNC, 1*VGA, 1*DVI,1* |
| VGA/DVI Resolution Ratio | 640*480,800*600,1024*768,1280*1024,1600*1200,1920*1080 |
| Resolution Ratio | 480I,480P,576I,720P,1080I,1080P |
| Output Port | 1 Video output(BNC) |
| Split Screen/PIP Mode | Two signals image or PIP |
| Splice Function | Multiscreen Splice Function(image processing Function) |
| Carton Packing | 2pc/carton, carton size: 114*34*70cm, G.W.: 47kg |
| Wooden box packing | 4cartons(8pc)/wooden box, wooden box size: 122*145*85cm, G.W.: 105kg |
| Spare parts | Power cable/ cable/ Lan cable/ Remote controller/ Warranty card/ Bracket/ Wrench/ Screwdriver/ Distributor( or VGA port)/ Wall-mount bracket |
Tag:curved video wall,55inch video wall,tv wall,video wall monitor,big screen monitor
