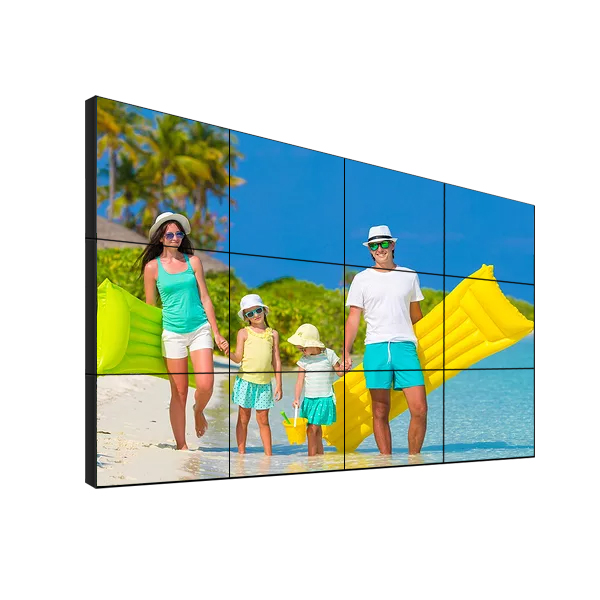

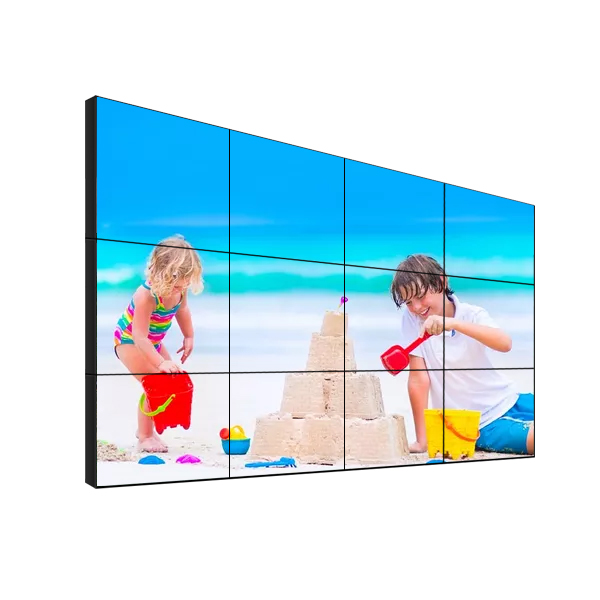

New Teachnology DID Screen 1.8mm Super Narrow Edge Gap 3*3 55 Inch Multi Panel 4*4 Full Colour HD Lcd Video Wall
Product description:
Feature Ultra-thin Bezel design to deliver maximum visual impact for all Digital Signage and Conference Collaboration Applications. With energy-saving LED Technology that enables 24hr a day operation, and Auto Standby for Image Burn Protection offer premium, reliable performance to meet all your commercial application demands.
Video wall has been widely used for lcd advertising display and CCTV monitoring system and we have full range of video wall on sale, support 7*24h working and random installation, can be installed on the wall or with a floorstanding cabinet. We will provide the full solution including processor/matrix, wall-mount bracket/floorstanding cabinet, processor, power cable, Lan cable, remote control and video wall setting adjustment software. Touchscreen is also on option.
Our Advantages:
1. Outer shell is made by high-class metal material,black or silver color etc, back-fixing mode with nice appearance. Outer shell color can be customized.
2. With a protection layer of ultra thin, high light, perfectly clear tempered glass on the surface of the LCD screen to protect the screen being damaged.
3. Choosing well known famous panels. A Class 335 standard, full new and factory original packing screen.
4. Theft-protection device effectively prevent the player and CF card from being stolen in public place.
5. Password can be set to protect the contents.
6. Password can be set to lock the keyboard of the remote controller.
7.Support software updating, new function can be customized according to customer’s needs.
8. Built-in two high quality stereo speakers.
Packaging and Shipping
Firstly, the lcd video wall will be packed with plastic wrap.
Secondly, the lcd video wall will be packed in carton.
Finally, the lcd video wall reinforced with wooden case for outer packing.
Technical Parameter
| Specification: | |
| Panel brand | Original well know famous lcd panel |
| Aspect Ratio | 16:9 |
| Visual Angle | Horizontal 178/Vertical178 |
| Brightness | 500cd/sqm |
| Bezel | 1.8 mm |
| Back light | LED backlight |
| Contract Ratio | 3500:1 |
| Resolution Ratio | 1920*1080 |
| Color Components | 10Bits |
| Response Time | 8ms |
| Power Consumption | 120W/150W |
| Standby power consumption | 10W |
| Power Supply | Input:AC110-220V-50/60Hz |
| Life of Panel | 60000Hours |
| Panel Display Area | 1209.6*680.4mm |
| Outline Dimension | 1211.4*682.2*53.3mm |
| Pixel Pitch | 0.630*0.630 |
| Port | Input: HD.MI*1,VGA*1,DVI*1,AV*2,RS-232*1,Output: AV*1,RS-232*2 |
| VGA/DVI Resolution Ratio | 640*480,800*600,1024*768,1280*1024,1600*1200,1920*1080 |
| HD.MI Resolution Ratio | 480I,480P,576I,720P,1080I,1080P |
| Split Screen/PIP Mode | Two signals image or PIP |
| Splice Function | Multiscreen Splice Function(image processing Function) |
| Carton Packing | 2pc/carton, carton size: 135*34*81cm, G.W.:58kg |
| Wooden box packing | 7pc/wooden box, wooden box size:140*128*98cm, G.W.:281kg |
| Bracket carton packing(for 7pc system) | 146*34*25cm, G.W.:33kg |
